Archive of digital boomer seismic reflection data collected offshore east-central Florida during USGS cruise 00FGS01, July 14-22, 2000

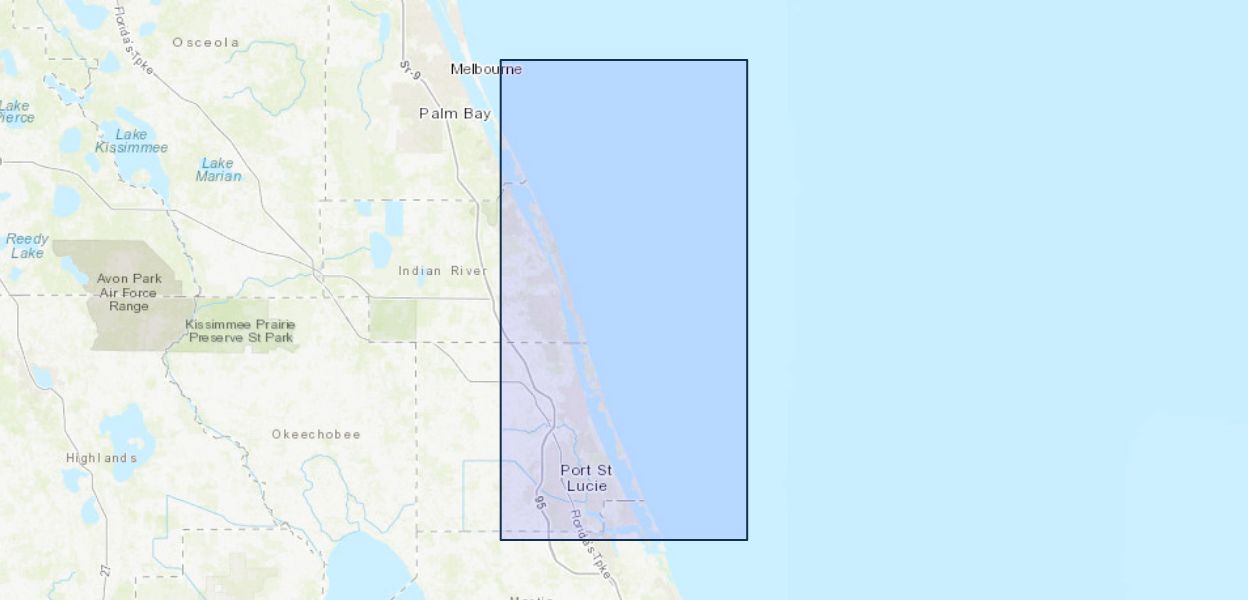

In July of 2000, the U.S. Geological Survey (USGS), in cooperation with the Florida Geological Survey (FGS), conducted a geophysical survey of the Atlantic Ocean offshore Florida's east coast from Brevard County to northern Martin County. This report serves as an archive of unprocessed digital boomer seismic reflection data, trackline maps, navigation files, Geographic Information System (GIS) information, digital and handwritten Field Activity Collection System (FACS) logs, and Federal Geographic Data Committee (FGDC) metadata. A filtered and gained (a relative increase in signal amplitude) digital image of each seismic profile is also provided. Refer to the Acronyms page for expansions of all acronyms and abbreviations used in this report. The archived trace data are in standard Society of Exploration Geophysicists (SEG) SEG-Y format (Barry and others, 1975) and may be downloaded and processed with commercial or public domain software such as Seismic Unix (SU) (Cohen and Stockwell, 2005). Example SU processing scripts and USGS Software for viewing the SEG-Y files (Zihlman, 1992) are also provided. The USGS St. Petersburg Coastal and Marine Science Center assigns a unique identifier to each cruise or field activity. For example, 00FGS01 tells us the data were collected in 2000 for cooperative work with the Florida Geological Survey (FGS) and the data were collected during the first field activity for that study in that calendar year. Refer to http://walrus.wr.usgs.gov/infobank/programs/html/definition/activity.ht… for a detailed description of the method used to assign the field activity ID. The boomer plate is an acoustic energy source that consists of capacitors charged to a high voltage and discharged through a transducer in the water. The transducer is towed on a sled floating on the water surface and when discharged, emits a short acoustic pulse, or shot, which propagates through the water, sediment column, or rock beneath. The acoustic energy is reflected at density boundaries (such as the seafloor, sediment, or rock layers beneath the seafloor), detected by the receiver, and recorded by a PC-based seismic acquisition system. This process is repeated at timed intervals (for example, 0.5 s) and recorded for specific intervals of time (for example, 100 ms). In this way, a two-dimensional (2D) vertical profile of the shallow geologic structure beneath the ship track is produced. Figure 1 displays the acquisition geometry. Refer to table 1 for a summary of acquisition parameters. The unprocessed seismic data are stored in SEG-Y format (Barry and others, 1975). For a detailed description of the data format, refer to the SEG-Y Format page. See the How To Download SEG-Y Data page for download instructions. The printable profiles provided are GIF images that were filtered and gained using Seismic Unix software. Refer to the Software page for details about the processing and examples of the processing scripts. The printable profiles can be viewed from the Profiles page or from links located on the trackline maps. To view the trackline maps and navigation files, and for more information about these items, see the Navigation page. Detailed information about the navigation system used can be found in table 1. Of a total record length of 200 ms, only the upper 100 ms of each profile are displayed because no useful information was observed deeper in the sections. A 10 ms deep water delay appears on lines b57-b63 and sl2-sl28. No digital data were collected for line sl6. However, line sl6r is a second attempt to collect digital data for this line. Digital data and 500-shot-interval location navigation are not available for the last 1,161 shots of line sl26 due to an equipment malfunction.
