Three-dimensional geologic framework model of the Rio San Jose groundwater basin and adjacent areas, New Mexico

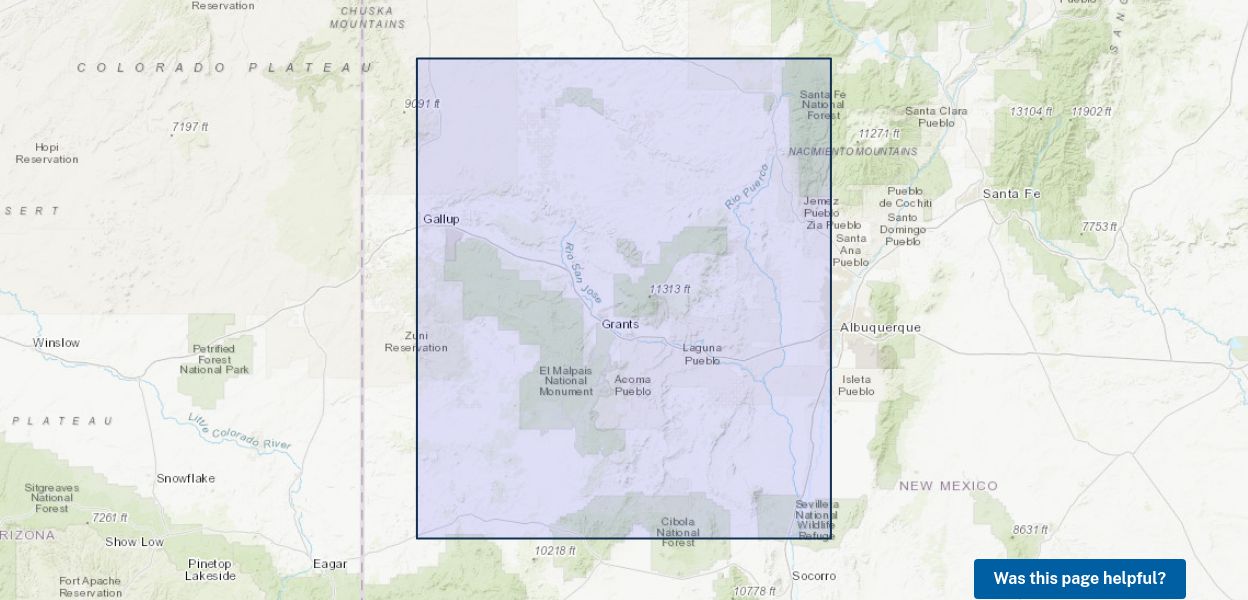

As part of a U.S. Geological Survey study in cooperation with the Bureau of Reclamation and the Pueblo of Acoma, New Mexico, and the Pueblo of Laguna, New Mexico, a digital three-dimensional geologic framework model was constructed for the Rio San Jose and its surface-water drainage basin in west-central New Mexico. This three-dimensional model defines the altitude, thickness, and extent of 18 geologic units for use in a regional numerical hydrologic model. The model included an undifferentiated Proterozoic basement layer, 13 consolidated Paleozoic and Mesozoic rock units, and 4 Cenozoic units. Model input data were compiled from published cross sections, well data, structure contour maps, selected geophysical data, and data derived from geologic maps and structural features in the study area. These data were used to construct faulted surfaces that represent the upper and lower subsurface geologic unit boundaries. The digital three-dimensional geologic framework model combines faults, the altitude of the tops of each geologic unit, and boundary lines depicting the subsurface extent of each geologic unit. The digital three-dimensional geologic model described in this report and the corresponding data release represents the generalized geometry of the subsurface geologic units; it reproduces with reasonable accuracy the input geologic data and is consistent with previously published subsurface conceptualizations of the region. The geologic framework model is at a scale and resolution appropriate for use as the foundation for a numerical hydrologic model of the study area.
